Specification:

Focus A1+ Ark-Jet/EX Direct to garment printer
Printing size	600mm*1650mm (Can be made custom)
Printhead	Piezo Inkjet 672 Nozzles technology
Print Color	8 Color: Cyan. Magenta. Yellow. Black. Light Cyan and Light Magenta.Light black. Light light black White printing: CMYK+WWWW
Printing Direction	Bi-Direction
Printing Speed	1440DPI model: A4 size/ 90s
Control pannel	Touch pannel
Max. height of object	15CM
Max. Printing resolution	2880DPI*1440DPI
Ink Tank Volume	150ML
Ink	Oil Base Ink / Dye base ink / Textile DTG ink
Height Adjust	Automatic/Manual Adjust/ Red-ray control
Printing Object Height Examine	Automatic Detecting
Printhead Protection	Intelligent Self Protect System
Power	110-220V 50-60HZ 75W
Printing Interface	USB2.0/LTP
Operation System	Windows95,98,NT,2000,XP,MAC
Working Environment	10-35 C,20-80 RH
Max.printing weight	25KG
Printer Size	2500MM1200MM1100MM
Shipping Size	2650MM1400MM1300MM
Printer N.Weight/G.Weight	240KG/360KG

Technical features:

1. Universal popular design.

2. High temperature oxidation treatment of paint, prevent color off and anti-scratch.

3. Strong mechanical making, 5mm thickness metal frame, 20mm thickness aluminium plate flatbed, all mechanical spareparts made from high quality aluminium, insure all parts working stable without distortion and flatbed moving without shake and excursion after longtime working.

4. Grinding treatmented ball screw guide rail go with dual cylindrical rail for Y axis motion. Driver the flatbed motion with high precision.

5. Servo motor with adjustable driver can let the Y axis flatbed moving get precision by 0.01mm. Compare with the step motor, the servo motor can achieve the recycle motion diagnose. It can make the printing very stable and got higher resolution printing. even 5# words can be printed out clearly.

6. Four pieces T type screw guide go with copper nut. make the Z axis motion stable to achieve the printing flatbed surface level on any position.

7. Made in France bearing go with high strength cylcular belt, extend the printer working life and reduce the working noise.

8. Newest bulk bottle ink supply system for this direct to garment printer, no need to change the ink cartridge any more, just change the ink bottle when replace the ink and refill the ink.

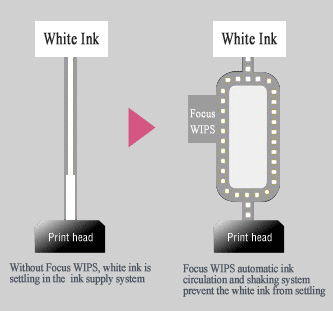

Focus newest WIPS white ink processing system also created for direct to garment printer, digital apparel printer, digital t-shirt printer to print with white ink to dark media, it is a good solution for titanium white ink settling and head clog, there are include White Ink Shaking System, White Ink Circulation System, One Step Flushing System. The shaking speed, shaking time, circulation flow rate, circulation time are also adjustable.

9. Industrial PLC control system is the heart of printer, Before we use the single chip control system, so if any problem will cause the print error, now we use the PLC control system, It is a special alone control center, can dispatch all the working command to different electronic parts separately of the t-shirt printer , and get worked information back. Then process and check itself, also it have self protection problem. Even any problem happen, the PLC will stop for protect the printer and prevent the print head, electronice board and other electronic parts damage. So it is easy to find out the problem and repair it even any problem happend.

10. High quality made touch screen control pannel.

11. Automatic up and down limit detecting by industrial red ray sensor. Can prevent the print head and flatbed scratching during printing.

12. Focus newest created ink carriage chips reset system and waste ink pad reset system. Can remove your headache for printer can not recognize chips.

13. Matching Professional FocusRip white rip and printing software, Get better graphic raster and rapid result while printing with white ink. Powerful function such as clor management, color channel divide management, ICC optional, Whiteness adjustable. Good raster result for direct to garment printing.
